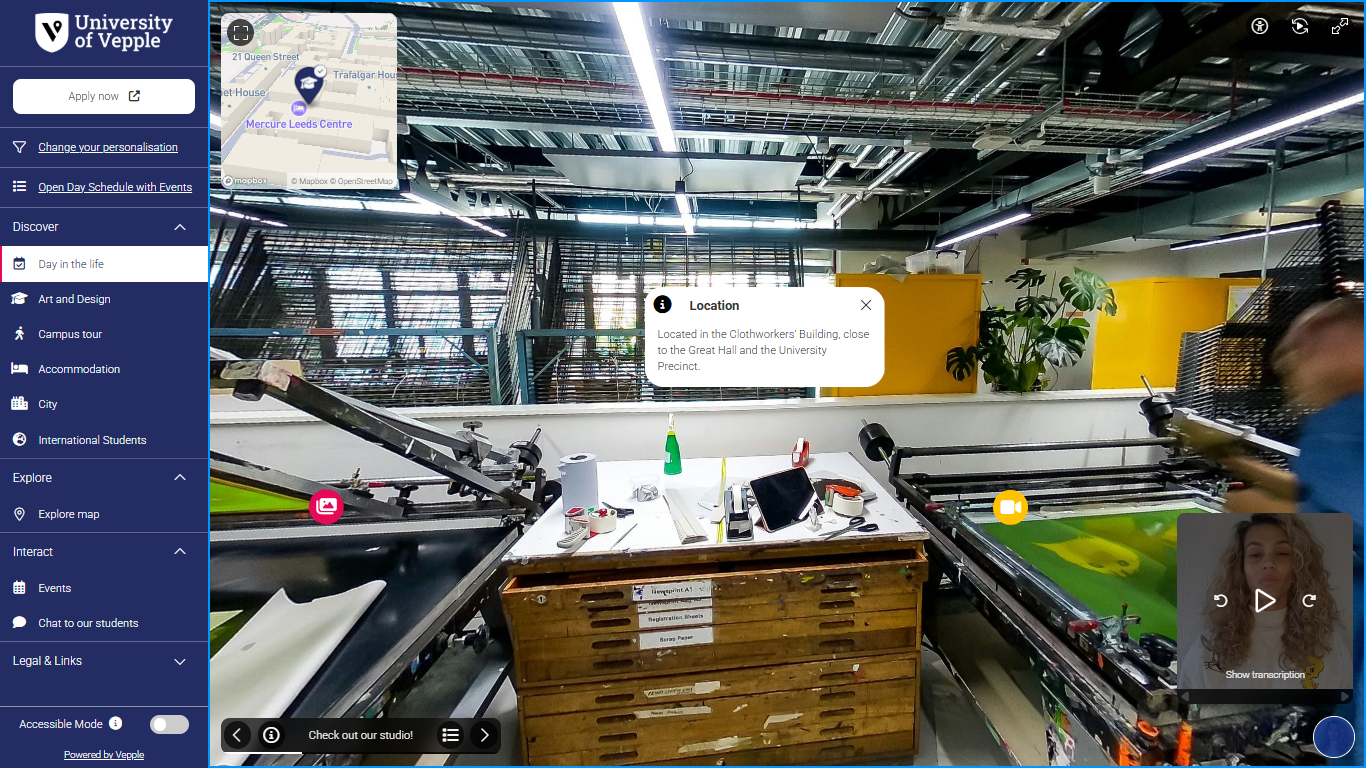

This feature allows for the overlay of essential details, such as building names and descriptions directly onto interactive 360 panoramas. The result is an informative student experience, mirroring the familiar information overlays seen in online maps and street views.
Adding info spots to an existing panorama;
- Use this field to add information spots to the 360 panorama. Click ‘add row’ and select the content type you wish to use.
- Select the information option, you will then be prompted to add a header, description and icon for the hotspot. Information spots are limited to 150 characters and are designed to give small bits of information for elements within a 360 scene. They are opened within the 360 without the need for a modal overlay.
Adding an image and a link to an info spot
Info spots can now carry more than just text. As well as a header and description, you can add an image and a clickable link, so you can show students something visual and point them to a relevant page, all from within the 360 scene.
When adding or editing an information spot, you will see two extra fields:
- Use the Image field to display a picture inside the spot.
- Add a web address in the CTA URL field to turn the spot into a clickable link for students.

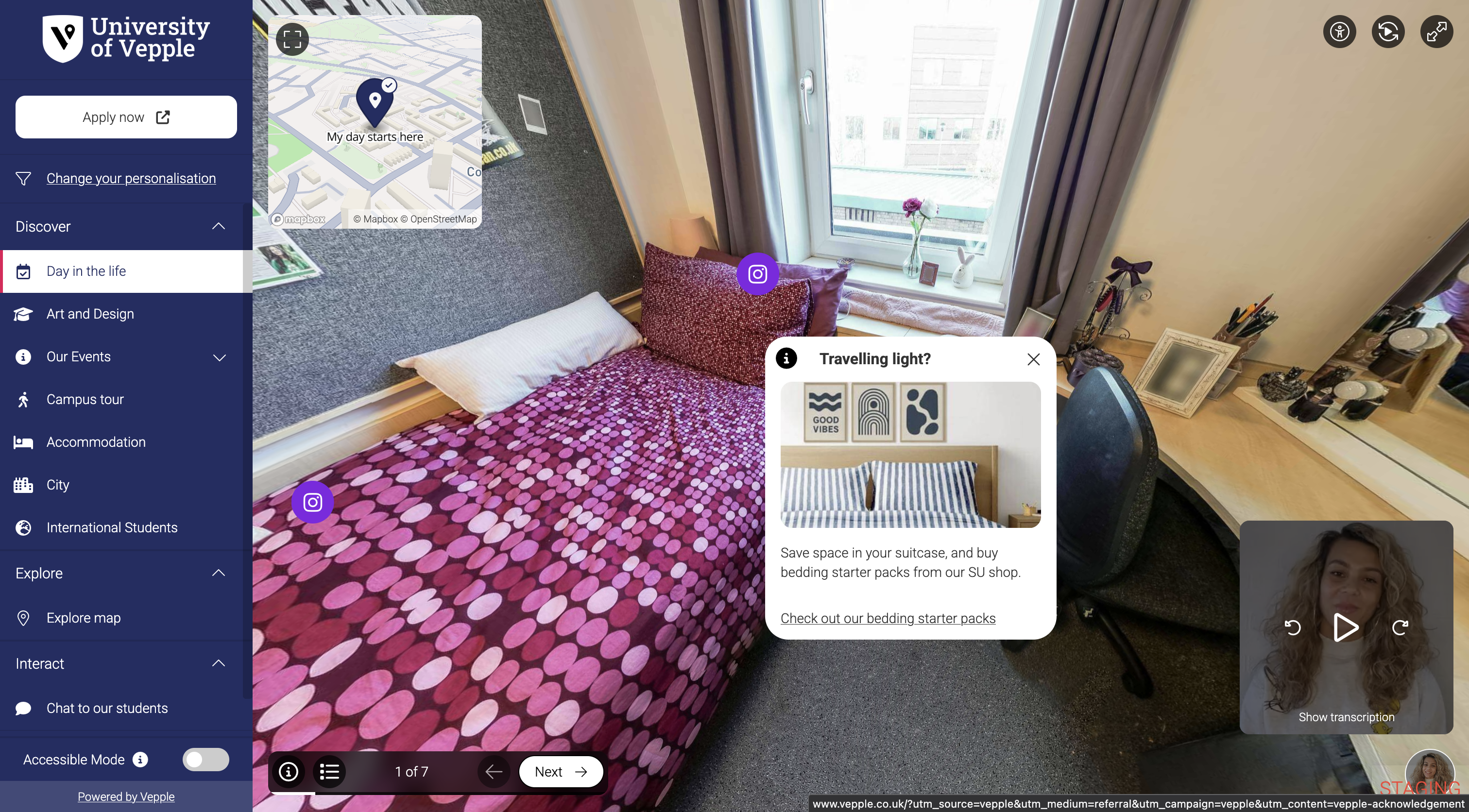

In the example below, the “Travelling light?” info spot shows an image alongside a “Check out our bedding starter packs” link, opened within the panorama without a modal overlay:

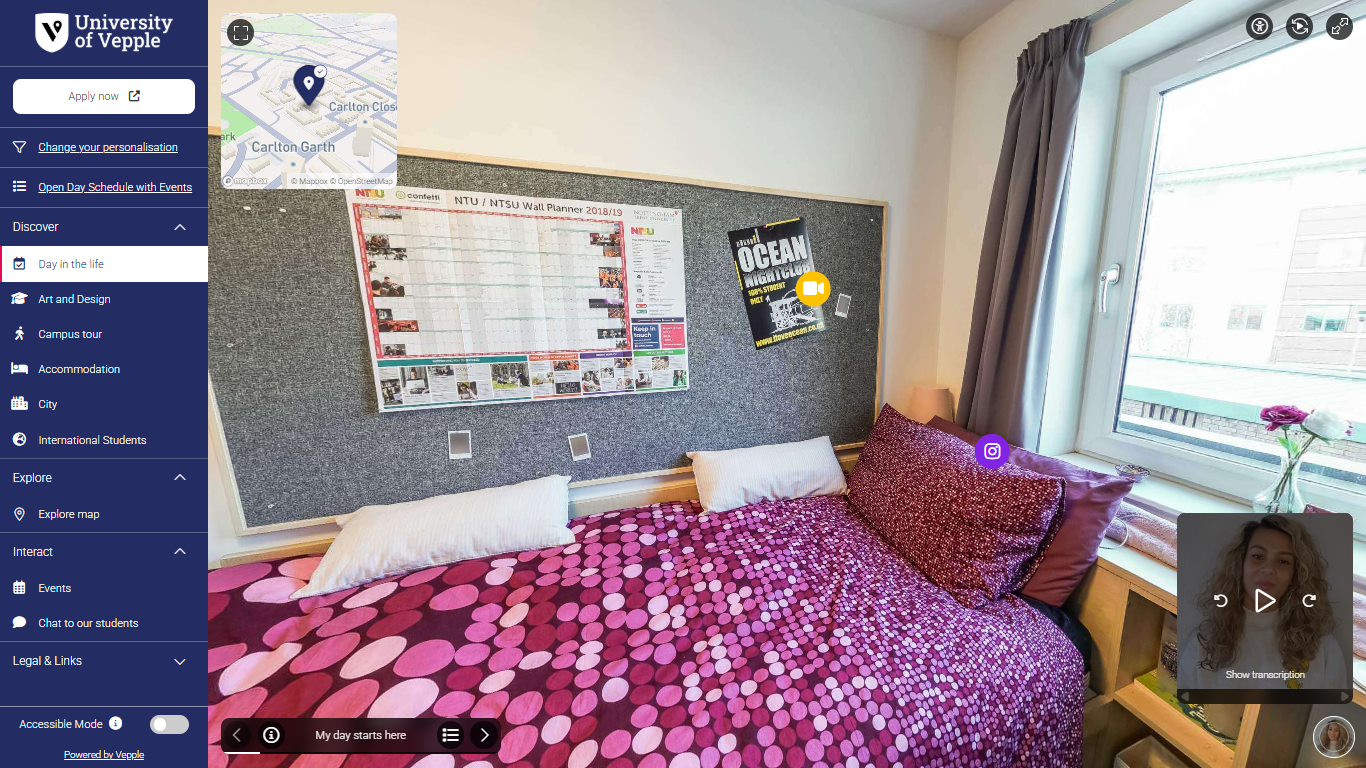

- A small tag will then show on the panorama above - move this tag on the panorama, to where you would like to position the content spot.
Showing a spot only to some visitors
Each info spot and content spot now has its own Filter tab. Use it when a 360 is shared by several subjects or audiences and you only want a spot to appear for the visitors it is relevant to. Spots you have already added are not affected until you set a filter on them.
When adding or editing a spot, you will see two tabs on the row:
- Content holds everything you fill in today: the header, description, icon, image, link or linked post.
- Filter holds one field for each of your site’s personalisation filters, for example Subject area or Study level. Choose the values the spot should show for. You can choose several in one filter, and you can leave any filter empty.
How the spot then behaves:
- A visitor sees the spot when their choices match every filter you have set. Within one filter, any of the values you chose will match. A filter you leave empty does not restrict the spot.
- Visitors who answered Not sure only see the spot if you add Not sure to that filter. This is how you include undecided visitors.
- The filters apply wherever that 360 is used: as a post, inside a group and as a guided tour stop. You set them once on the 360.
- A content spot with its own filters uses those instead of the tags on the post it links to.
- On guided tours, Show on tour still applies as well, so a spot must pass both.
- A spot with no filters set behaves exactly as before: info spots show to everyone, and content spots follow their linked post.
Embedded tours on your own website do not use personalisation, so they continue to show every spot.
For a new post;
- Go to your CMS
- Create new post
- Select 360 panorama
- Select your image of choice.
- Follow the above steps
